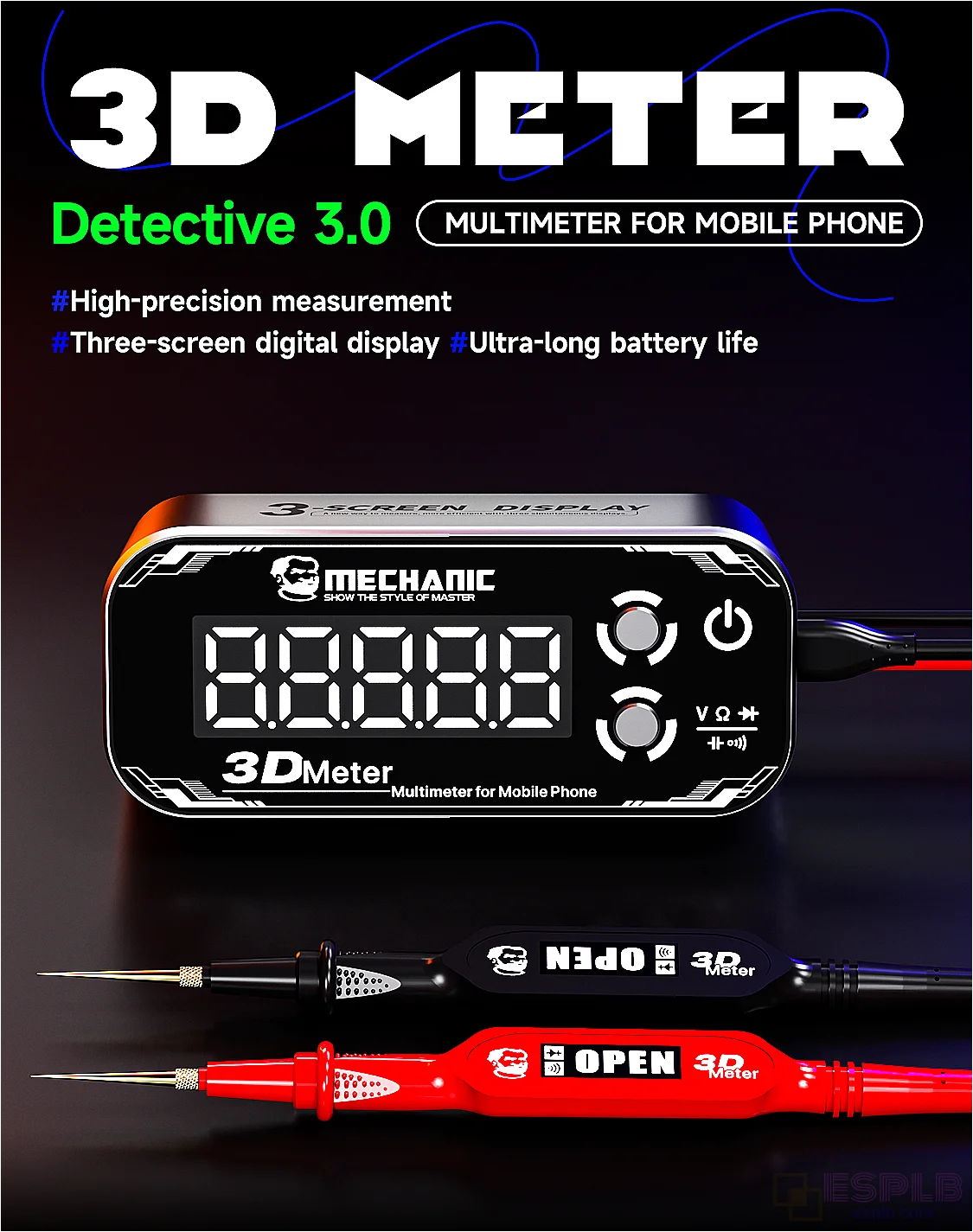

3D Meter 3.0 Handheld Digital Multimeter with Triple Display for Voltage, Resistance, Capacitance, and PN Junction Testing

Experience efficient diagnostics with the 3D Meter 3.0 digital multimeter, a professional-grade tool engineered for technicians, engineers, and electronics enthusiasts. Its triple-screen display shows voltage, resistance, and capacitance values simultaneously on both the meter and test pens, reducing the need to glance back and forth while diagnosing components. The built-in 2000mAh lithium battery ensures extended operation, and the auto-shutoff function after 15 minutes of inactivity preserves battery life.

Designed for single-hand operation, this compact multimeter features a gold-plated steel probe that delivers highly accurate results with excellent conductivity. The aviation-grade aluminum alloy housing offers superior heat dissipation and durability, perfect for demanding environments such as workbenches, mobile phone repair stations, and circuit diagnostics. With precise measurement ranges and dedicated modes for PN junction testing, resistance, capacitance, and continuity, this tool meets the needs of both professional and DIY electronics work.

Features:

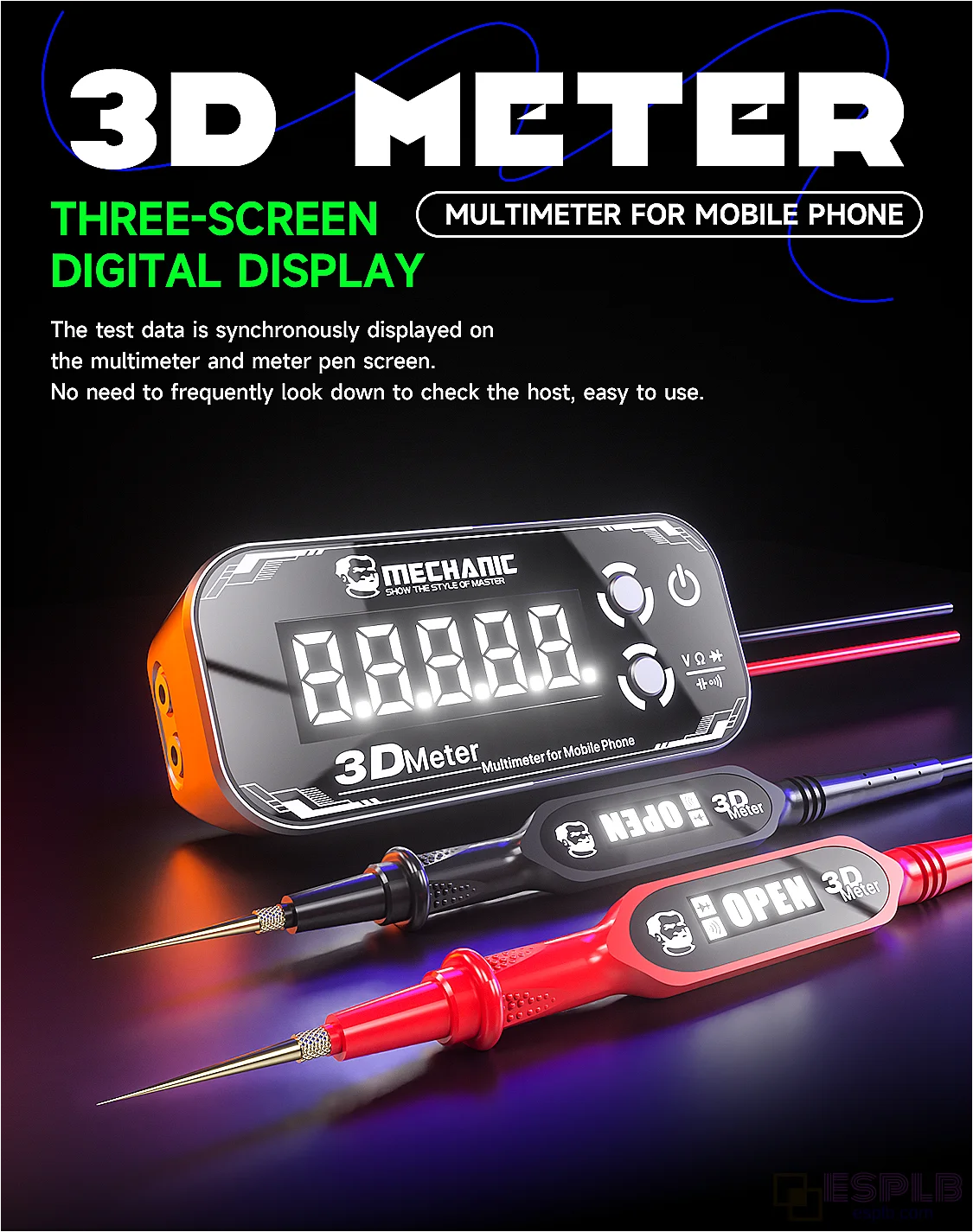

Triple-screen digital display: Test data is displayed synchronously on the multimeter screen and test pens, eliminating the trouble of frequently checking the host.

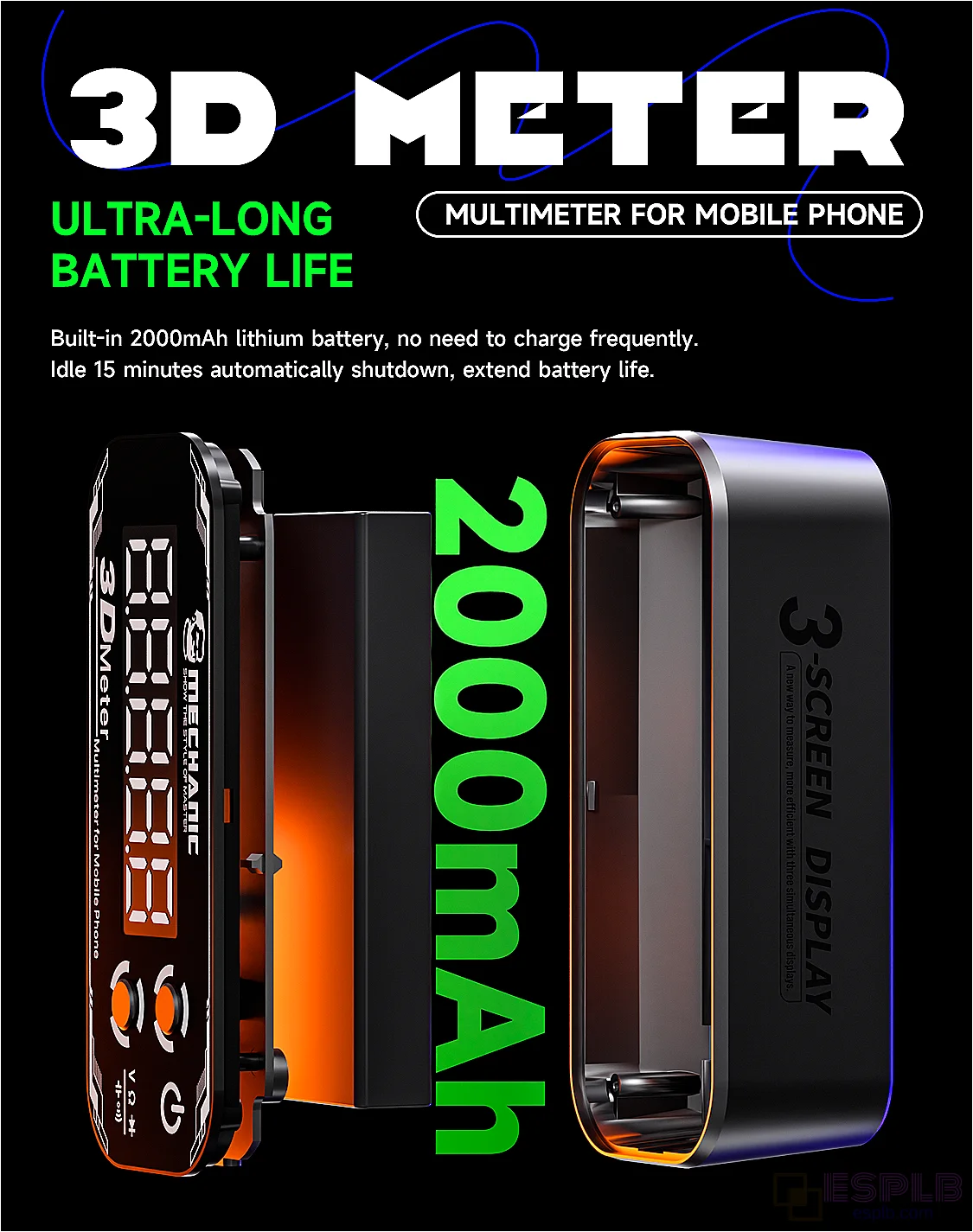

Extremely long life: Equipped with a built-in 2000mAh lithium battery, it supports long-term use and automatically shuts off after 15 minutes of inactivity to save power.

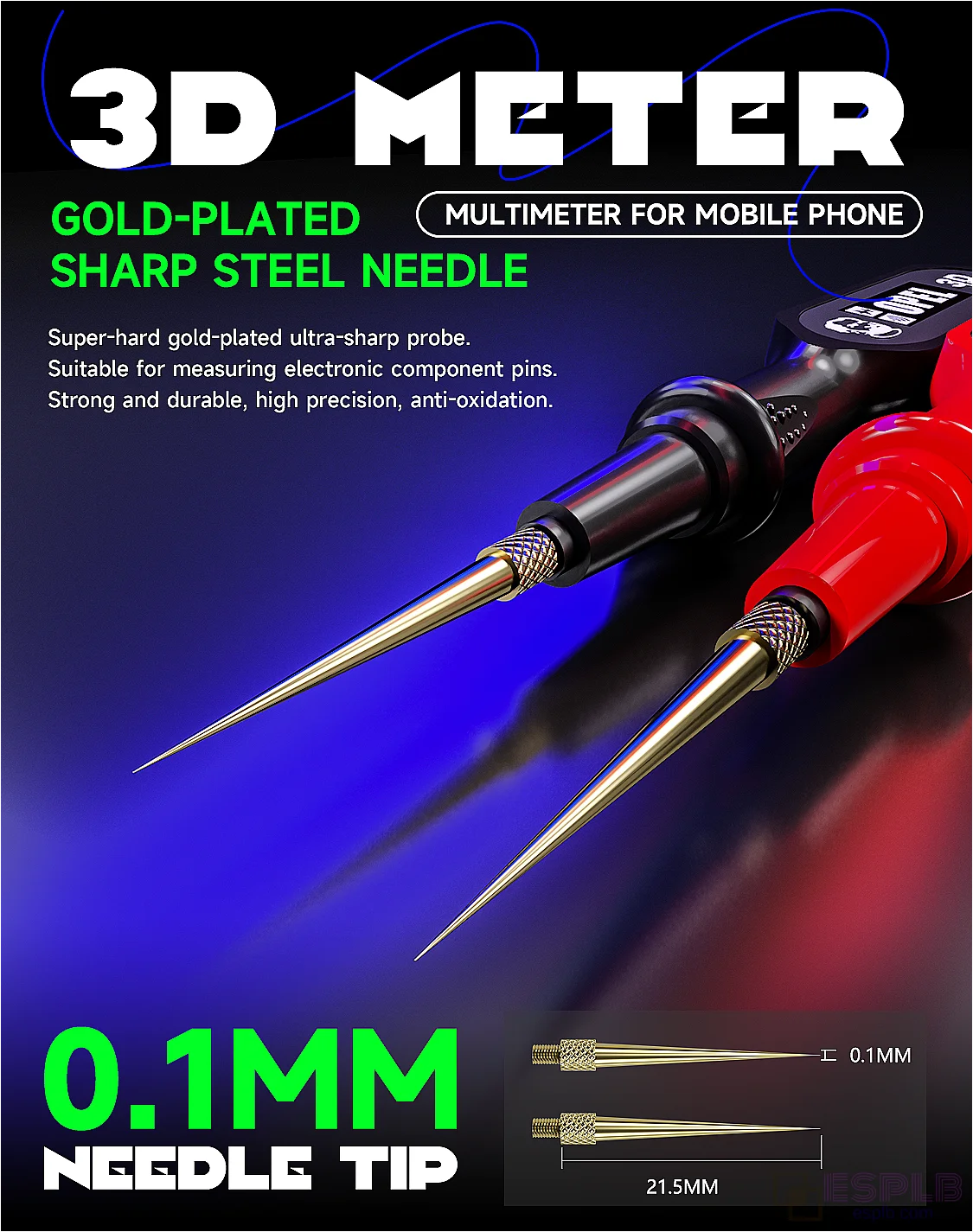

Gold-plated steel needle: Ultra-sharp, ultra-hard, gold-plated probes ensure accurate measurement of electronic components with durability and high precision.

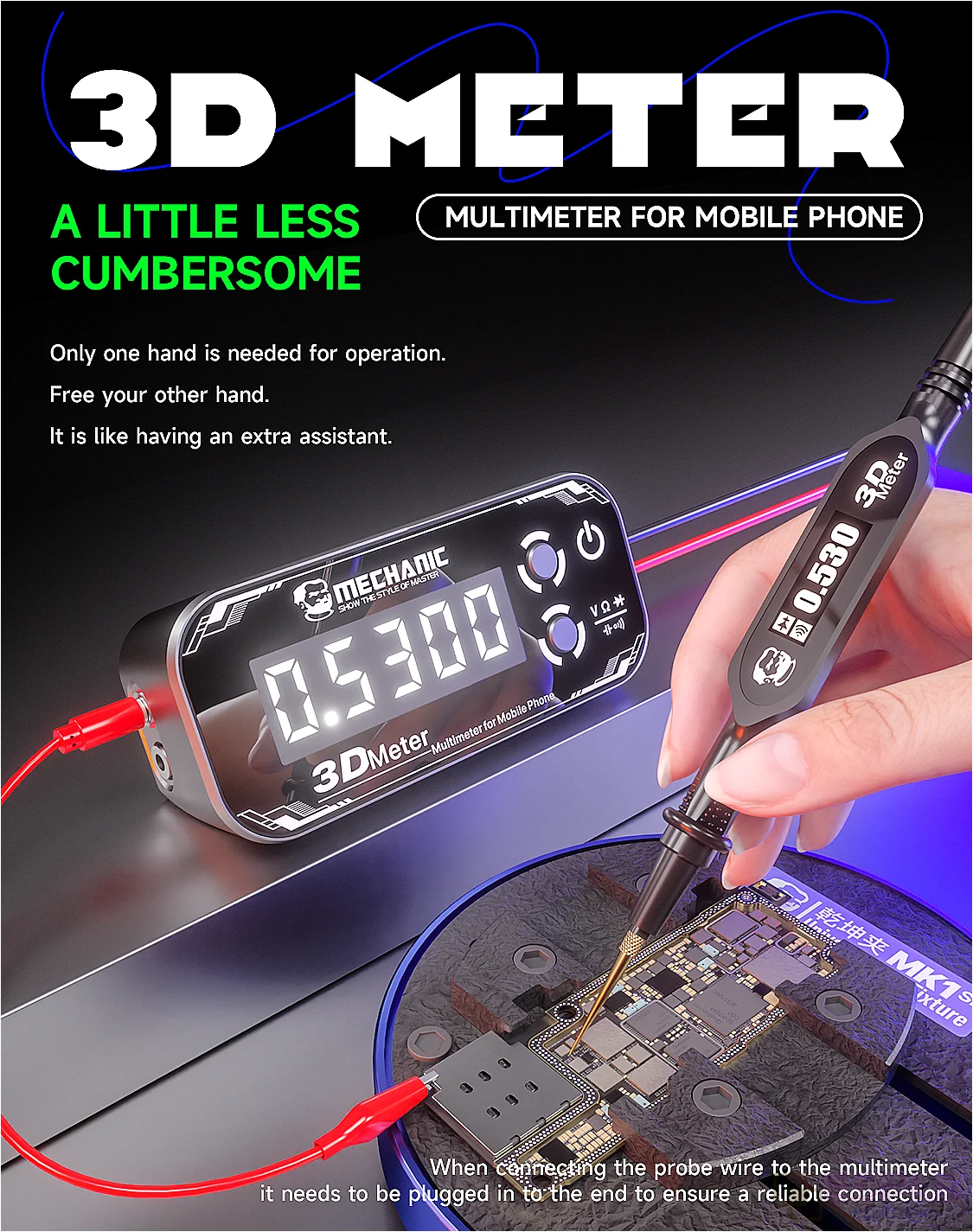

Compact and ergonomic design: Only 1 hand is required to operate, freeing up the other hand for multitasking. The aviation-grade aluminum alloy provides excellent heat dissipation, wear resistance and comfortable grip.

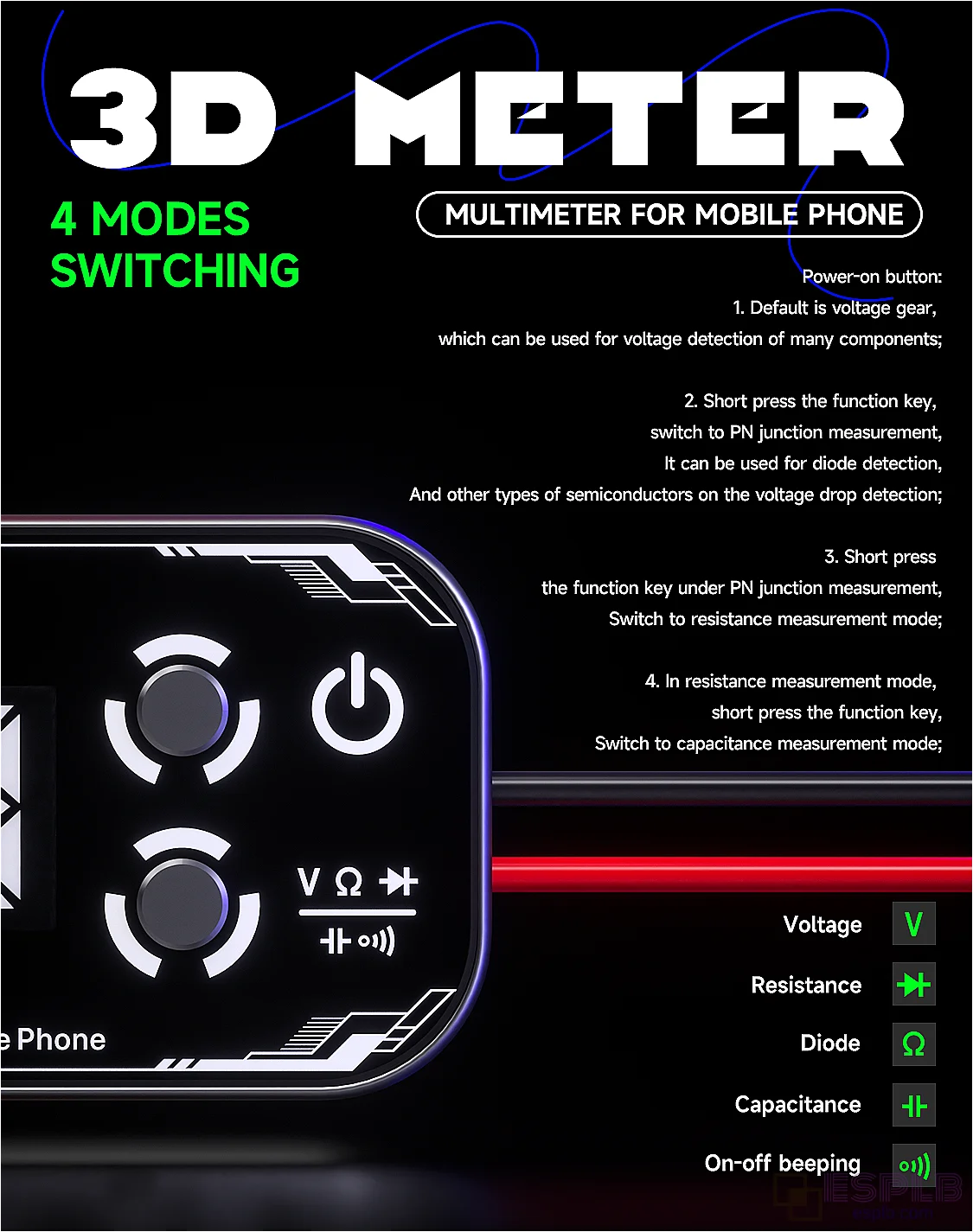

Measurement modes and functions:

Voltage detection: The default mode for measuring component voltage.

PN junction measurement: For diode and semiconductor voltage drop detection.

Resistance measurement: Accurately measure resistance values.

Capacitance measurement: Supports high-precision capacitance measurement.

Switch sound: Audible continuity test for greater convenience.

Triple screen display: Display voltage, resistance, and capacitance values simultaneously for quick diagnosis (0.0001 resolution).

Precise measurement: Voltage: accuracy ±0.1%, range -24.000V to +24.000V

Resistance: 0.0000Ω to 9.9999MΩ (±0.8% reading + 5 digits)

Capacitance: 0.000 μF to 9.999mF

Node PN: 0.0000-1.9999V

2000mAh lithium battery: 15 minutes automatic shutdown to extend service life.

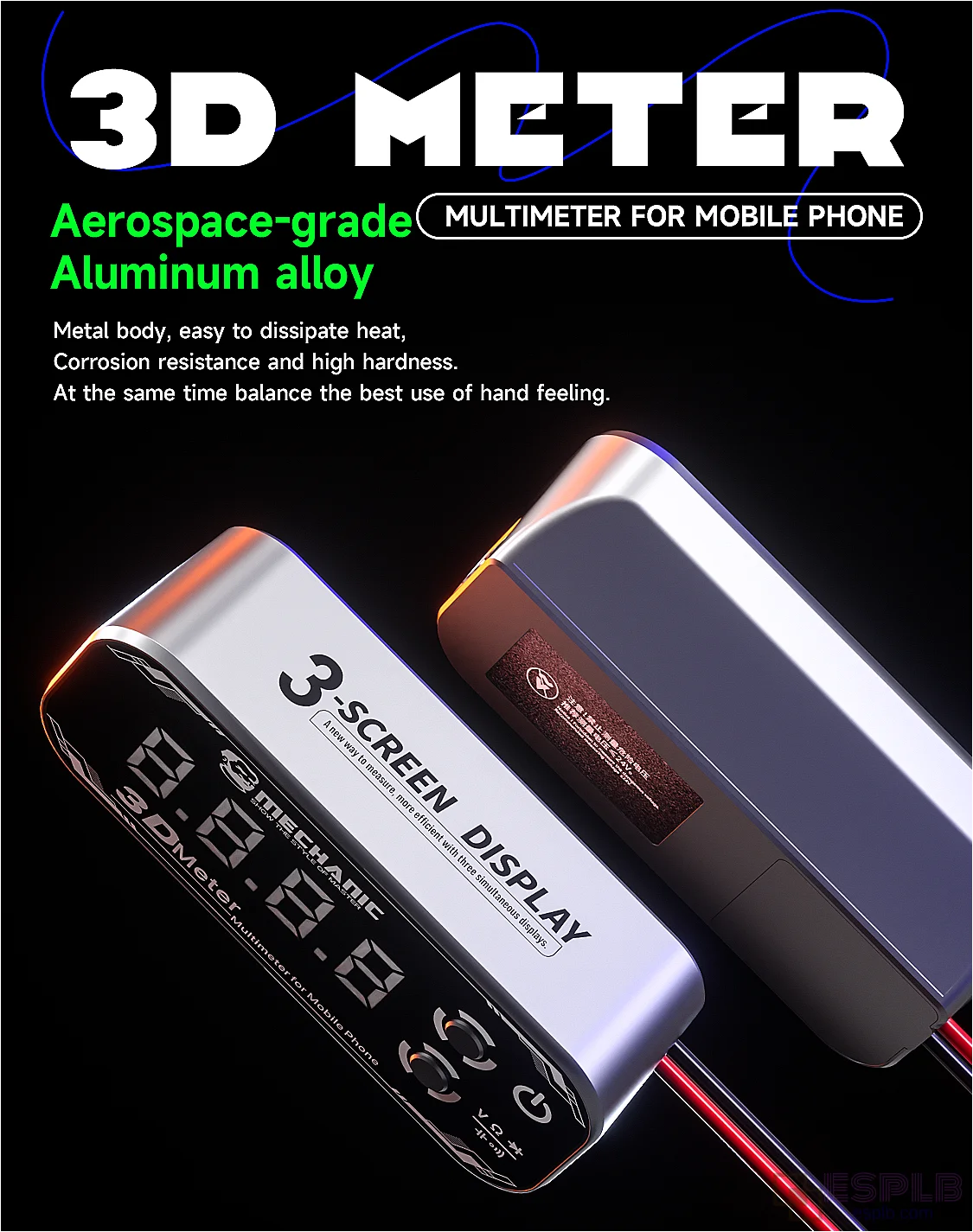

Premium design: Aircraft-grade aluminum alloy body, wear-resistant, heat dissipation.

1-handed operation: Compact size (125×37×55 mm), easy to repair in small spaces.

Suitable for: Technicians, engineers, and hobbyists who need a high-precision handheld multimeter to diagnose mobile phones and electronic components.

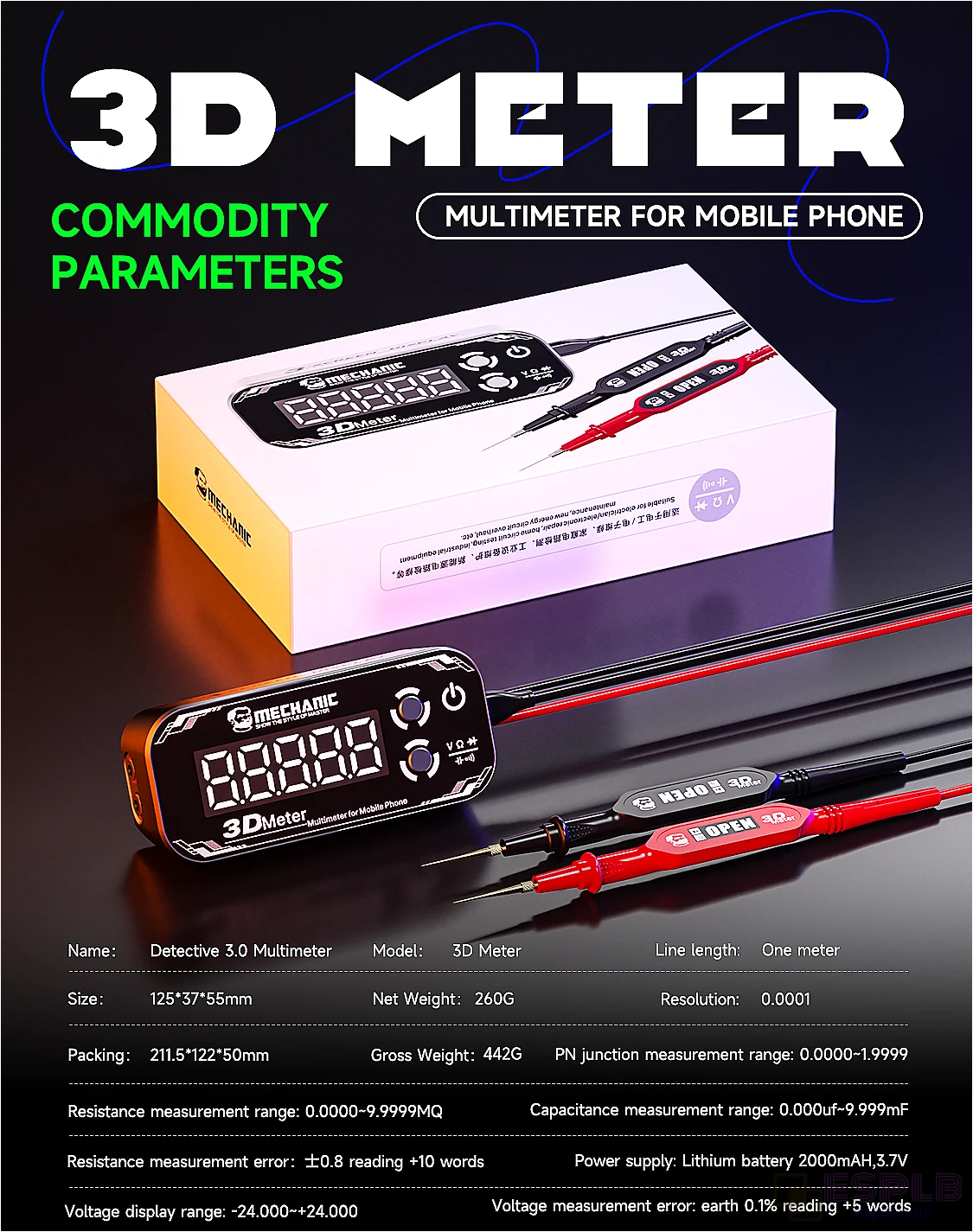

Specifications:

Part name: 3.0 Three-screen digital display multimeter

Model: 3D meter

Material: ABS

Size: 125*37*55mm

Color: black

Resolution: 0.0001

Measuring range:

PN junction: 0.0000-1.9999V

Resistance: 0.0000–9.9999MΩ

Capacitance: 0.000 μF–9.999mF

Voltage: -24.000V to +24.000V

Power supply: 2000mAh lithium battery (3.7V)

Wire length: 1 meter

Package Contents:

1*Detective Multimeter 3.0
